LEDEO Video Wall

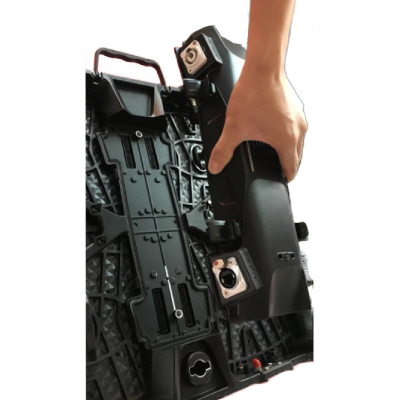

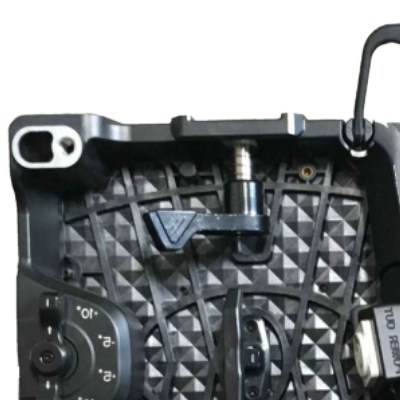

This high definition, seamless & ultra secure video wall by LEDEO comes in a selection of various pixel pitches. SMD (2020) 3 in 1 RGB pixel configuration. Available in both indoor and outdoor variants. This unique product offers both high quality and affordability in one bespoke and configurable package. The option for arc rotary lock panels allows you to mount each panel at 0°,±5°,±10° angles to create curved screen installations. Each panel has a modularised design for front and rear servicing, as well as independent receiving cards and power supplies, with PowerCon & EtherCon input & links. With an overall screen gap of less than 0.3 mm this is a truly seamless display. Locating pin connectors allow for fast single-person installation. Anti-collision pins on the module underside prevent direct ground contact. All controlled by the Nova Star LED control system. These screens are suitable for hanging, stacking, mixed shape, ceiling and dance floor installation.

Specification

- Pixel Pitch indoor models: 1.9, 2.9, 3.9 & 4.8mm

- Pixel Pitch outdoor models: 2.9, 3.9, 4.8 & 5.9mm

- Configuration: SMD 3 in 1 RGB

- Connectors: PowerCon & EtherCon input & links

- Indoor & Outdoor variants

- Module resolution: 64 x 64 dots

- Module pixels: 4096 dots

- Module size: 250 x 250 mm

- Cabinet size: 500 x 500 mm

- Cabinet resolution: 128 x 128 dots

- Cabinet pixels: 16384 dots

- Pixel density: 65410 (indoor), 65536 (outdoor) dots/m2

- Average power consumption: 144W/m2 (indoor), 230W/m2 (outdoor)

- Max power consumption: 436W/m2 (indoor), 560W/m2 (outdoor)

- Cabinet weight: 9 kg (indoor), 9.5 kg (outdoor)

- Brightness: 1500 cd/m2 (indoor), 5500 cd/m2 (outdoor)

- Optimal viewing distance: 3-150m

- Refresh frequency: 2880hz (indoor), 3840hz (outdoor)

- Frame refresh rate: 50 - 60 hz
