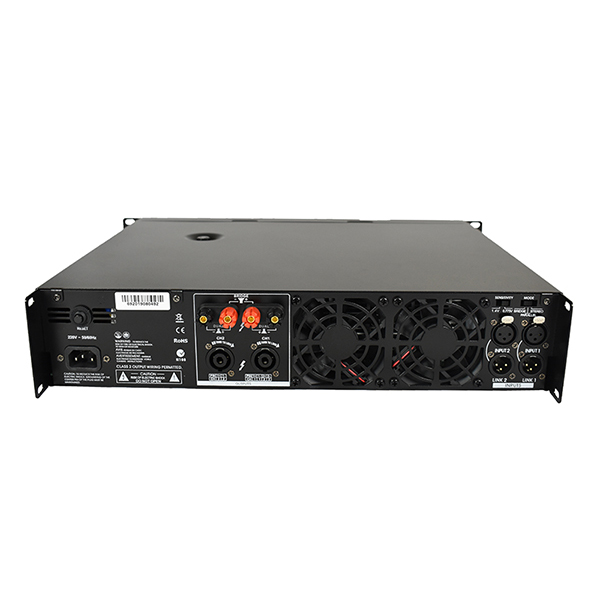

Vector DFP1200 Amplifier 2x600w@4ohm 2u Rack Mount

Product Code: VEC324

To purchase this item or for further information on any of our products, please contact us on

T: 01458 833186
E: orders@batmink.co.uk

Information

The DFP Series by Vector Audio has been engineered to work easily with any loudspeaker system. Powerful, Sturdy & dependable these units are Designed for affordability & built with premium components. The DFP power amplifiers are perfectly suited for use across many applications from Musicians, DJs, Pubs, Bars & Clubs, Houses of Worship etc. Features include XLR & 6.3mm Combi input connectors. Selectable 0.775v / 1.0v /1.44v input sensitivity, SpeakOn and binding post outputs, Stereo & Bridged Mono modes, Circuit protection and much more. Other models in the series include;  DFP260, DFP600, DFP900, DFP1200, DFP1500 & DFP2400.



  • Input: XLR and one unbalanced RCA per channel
  • Output: 4- Pole speakon and one pair binding post per channel
  • 2 x 600w output at 4ohm
  • 2 x 400w output at 8ohm
  • 1 x 1200w output at 8ohm bridged mono
  • Frequency Response: 20Hz -20KHZ +0/-1dB (at 1 Watt)
  • Total Harmonic Distortion (THD): <0.5%, 20Hz – 20KHz
  • Intermodulation Distortion (IMD): <0.35%
  • Slew Rate: >10V/us
  • Voltage Gain: 31dB
  • Damping Factor: (8ohm, 10 Hz to 400 Hz) >200
  • Signal To Noise Ratio: (20 Hz to 20 KHz, A-Weighted) >100dB
  • Crosstalk: (Below rated Power, 20 Hz - 1KHz) -75dB – 59dB
  • Input Sensitivity: (For full rated power at 8ohm) 0.775V or 1.4v
  • Input Impedance: (Balanced, Unbalanced) 20k ohms, 10k ohms
  • Short Circuit Protection
  • Flow-Through Ventilation
  • Cooling: Internal Heat Sinks, Fan Cooled, Speed regulated, Thermal protection
  • Finish: Black
  • Dimensions: 482mm x 89mm x 315mm
  • Weight: 12.7kg

Download manual
