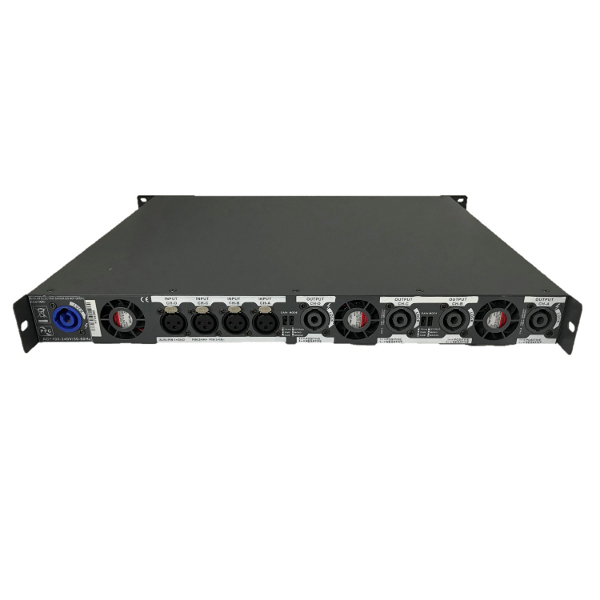

• Input: XLR (with link out)
• Output: Speakon

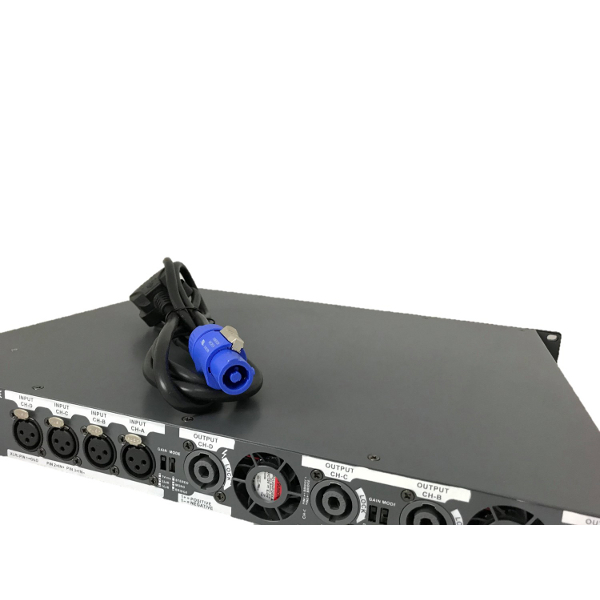

• Power Input: PowerCon
• Channel: 4 Channel
• 4 x 1200w output at 8ohm
• 4 x 2100w output at 4ohm
• 2 x 3500w output at 2ohm
• 2 x 4200w output at 80hm bridge mono
• 2 x 7000w output at 40hm bridge mono
• Maximum RMS Voltage: 97v
• Slew Rate (at 1Khz): 50v
• Input Sentitive: 1v RMS
• Total Harmonic Distortion (THD) <1%
• SMPTE Intermodulation Distortion (IMD) <1%
• Dynamic Intermodulation (DIM30) <1%
• Crosstalk (1KHz at 10% output power 80hm): -70dB
• Frequency Response: 20Hz - 20KHz 10% Power 80hm: +2dB
• Input Impedance: Parallel: 20K ohm Unparallel: 10K ohm
• Damping Factor: 100Hz, 8ohm output load: 200
• Signal Noise Radio (20Hz -20Khz): >105dB
• Power Requirements: AC 100-240V (50-60Hz)
• Protection: Overheat / Thermal output power control / Long term output power control / Overload protection / DC protection / Output short circuit
• Finish: Black
• Dimensions: H483mm x W390mm x D44mm
• Weight: 8.150kg
