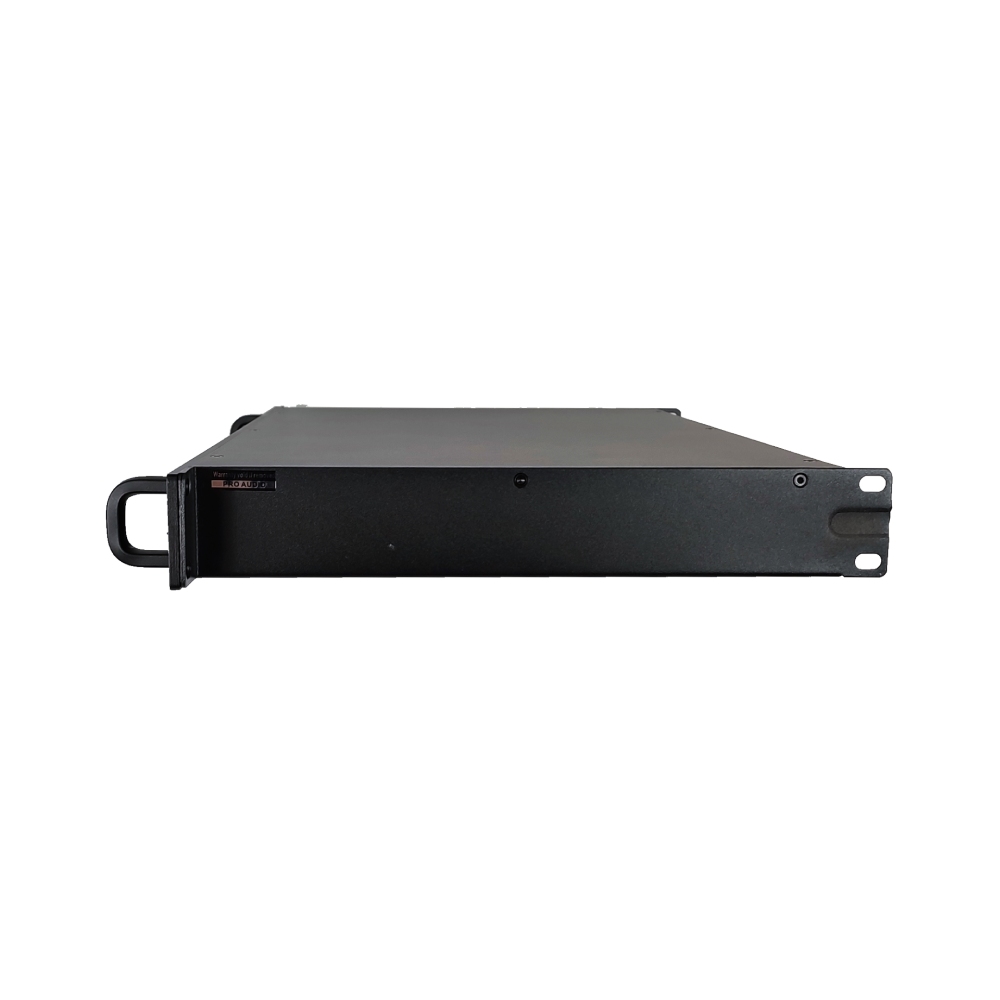

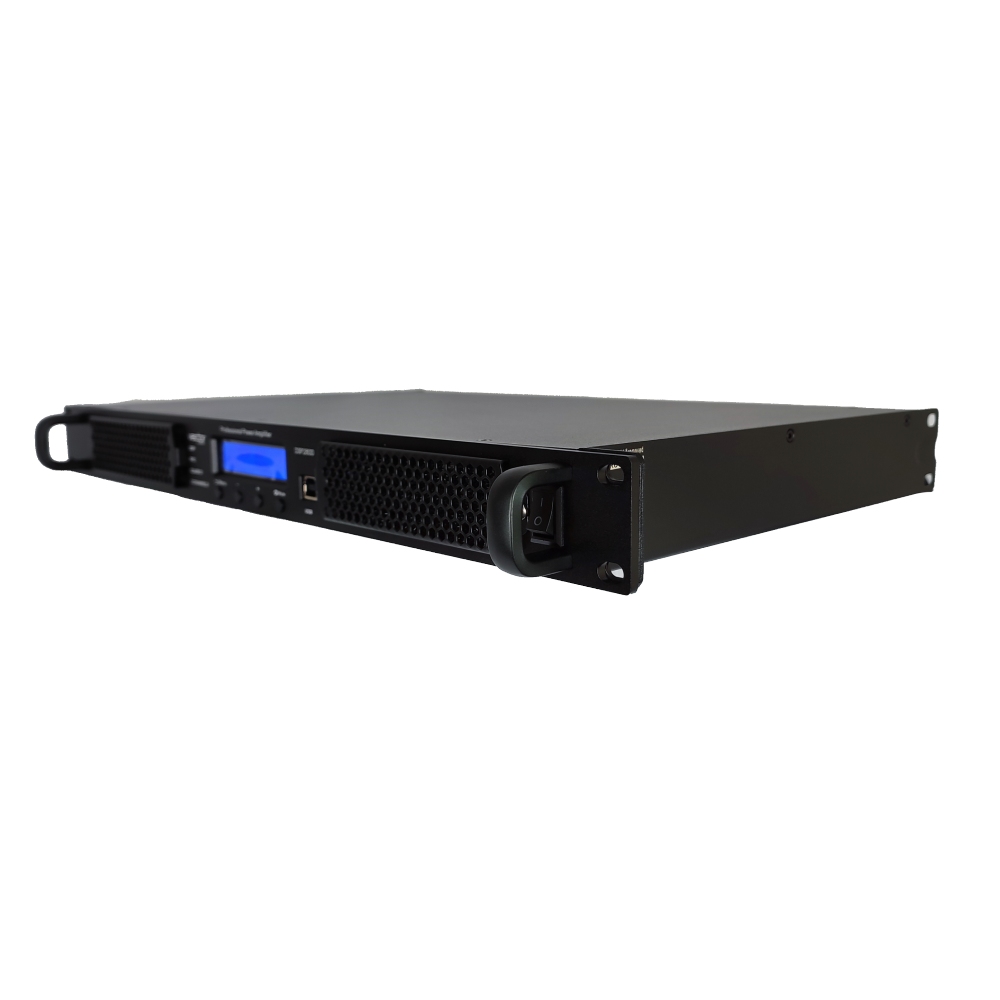

Vector DSP2800 2x800W@4ohm, 19" 1U

Product Code: VEC372

To purchase this item or for further information on any of our products, please contact us on

T: 01458 833186
E: orders@batmink.co.uk

Information

The Vector DSP series advanced Class D amplifiers bring together efficiency, reliability and high power into one sleek, light weight 1U unit. With built-in digital signal processing you can control the route, gain, phase, EQ, delay, frequency, compression & limitation of your speaker system. Vector DSP models are perfectly suited for touring, live & corporate events or fixed installation into bars, pubs, clubs, schools, houses of worship etc. Models include 2 & 4 channel variants all with LCD display and four button control as well as a USB interface for PC setup.



DSP Features:

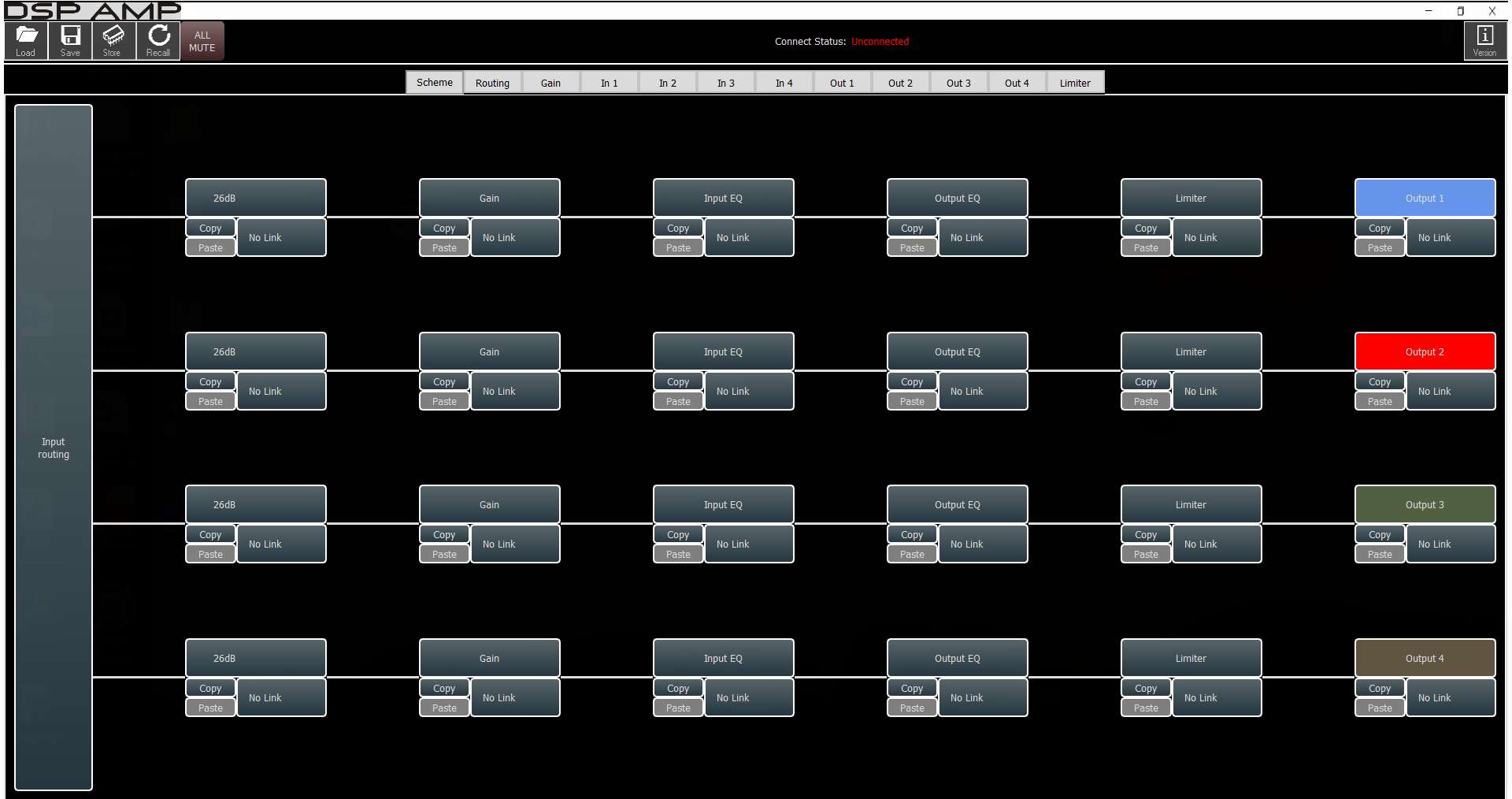

Signal Routing - All input channels can be routed to any output channel

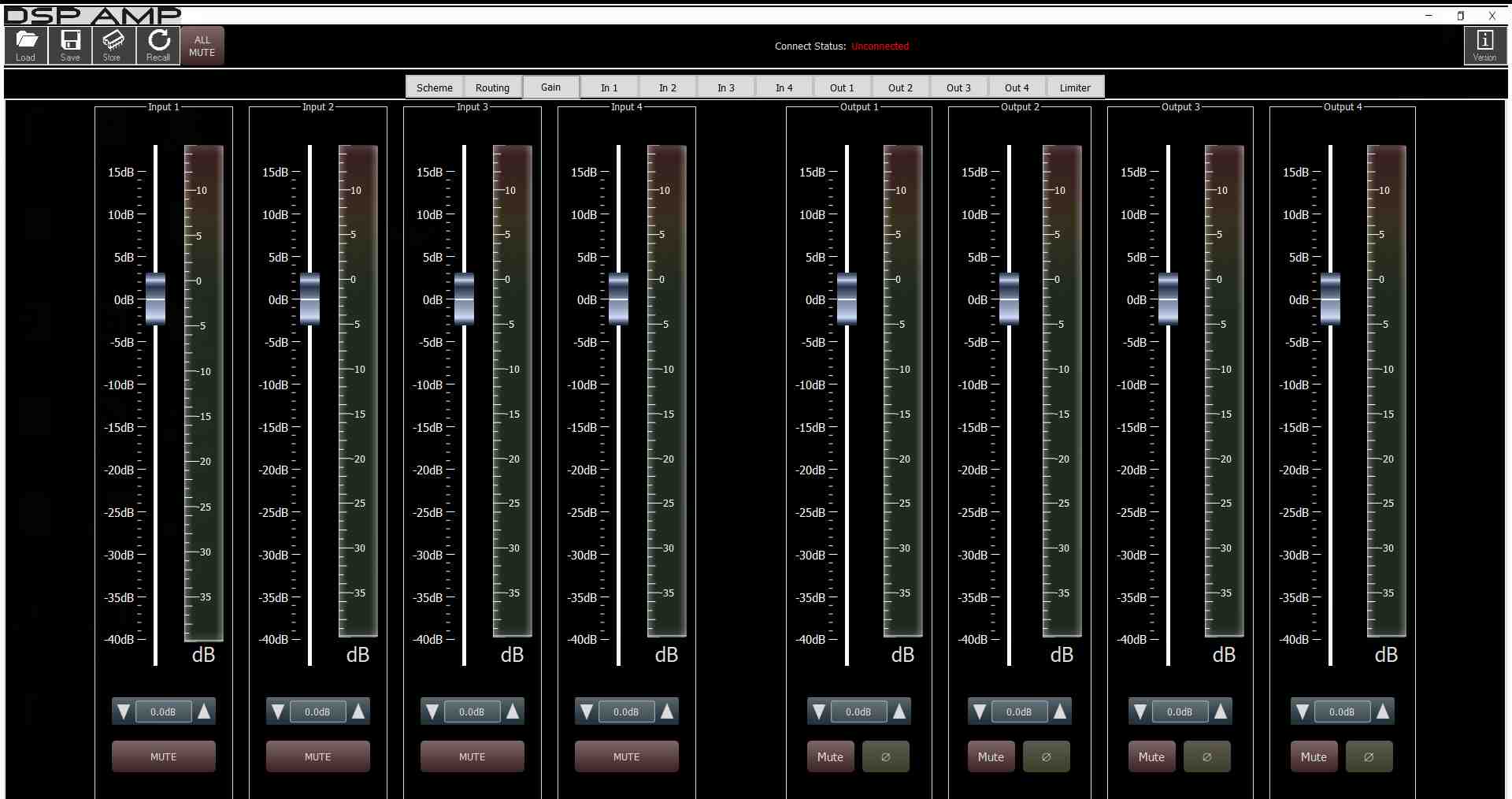

Gain Control - Adjustment range +15dB to -40dB (0.1dB Per Unit)

Delay - 0-20ms separate delay control for all input & output channels with speaker Delay upto 800ms

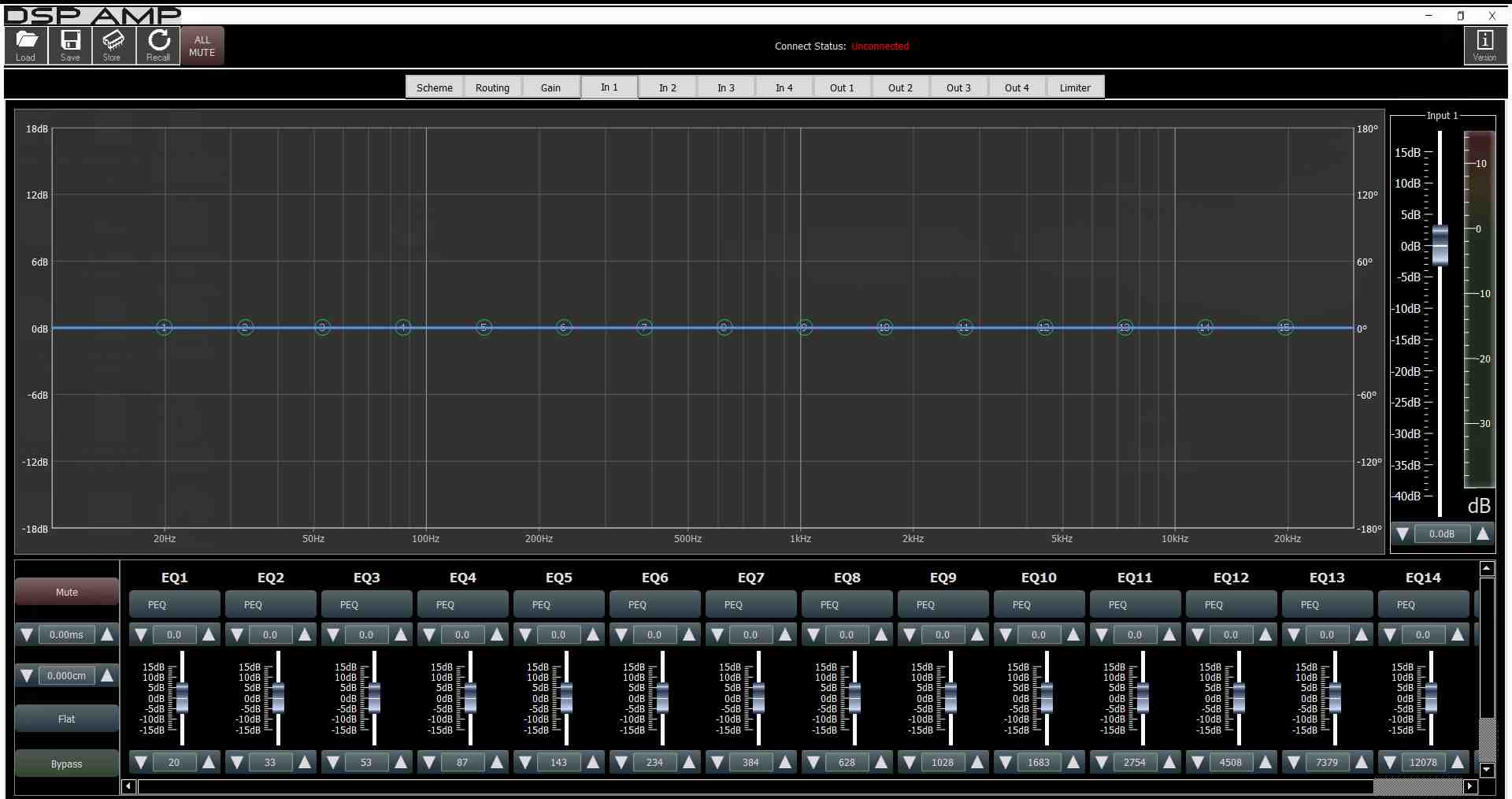

EQ - Parametric equalizer & 31 band equalizer on all inputs & outputs

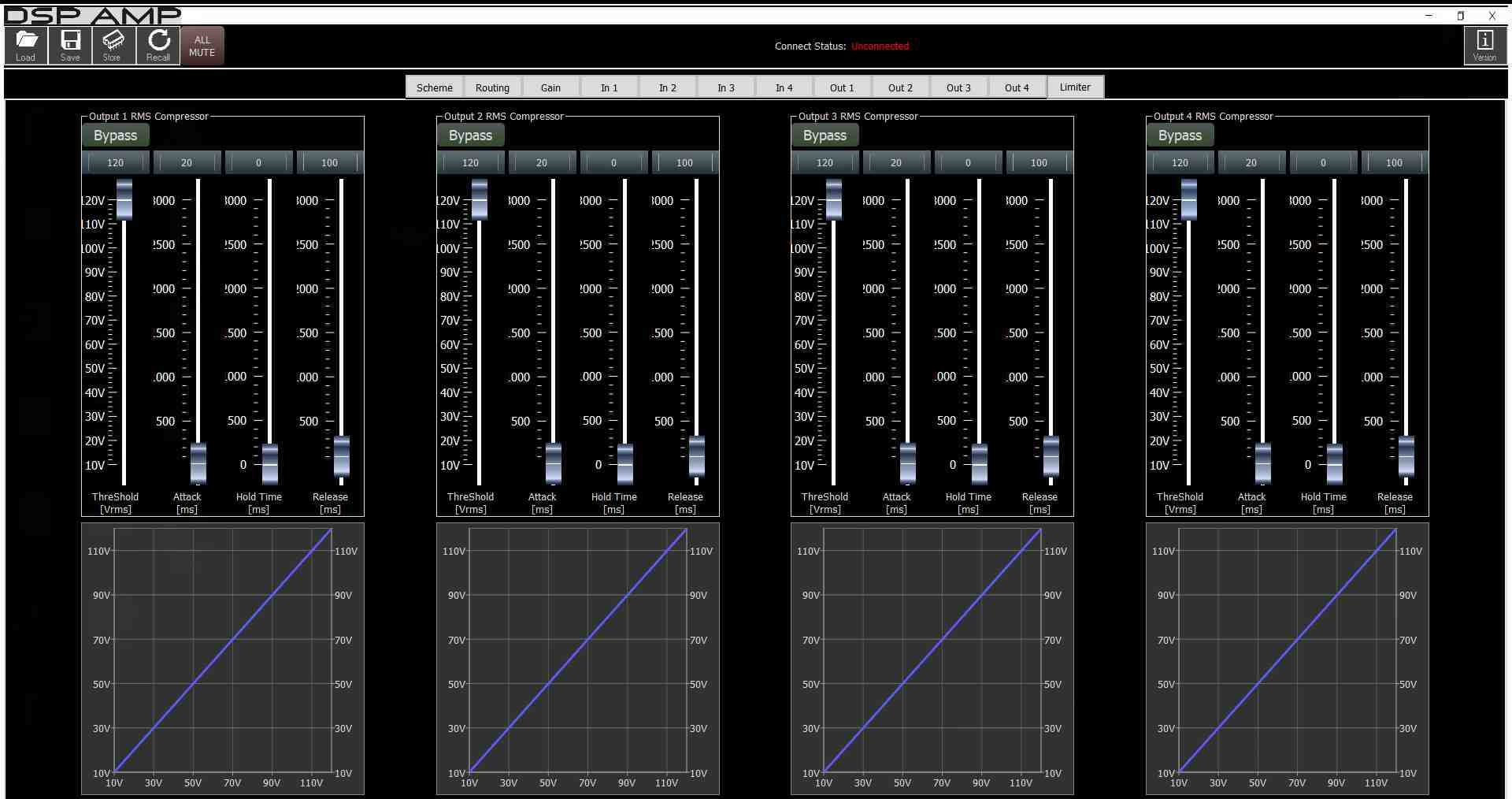

Compressor Limiter - Time: 10ms-3000ms, Hold Time:- 0ms-3000ms, Step: 1ms, Release Time:10ms-3000ms, Step:1ms



Specifications:

  • Circuit Category:- CLASS D
  • 2 x 1100w @ 2ohm
  • 2 x 800w @ 4ohms.
  • 2 x 500w @ 8ohms.
  • 1 x 2200w @ 4ohms Bridged Mode
  • 1 x 1600w @ 8ohms Bridged Mode
  • THD:- 0.035% @ 8O, 1kHz 1/8 Rated Power
  • IMD:   0.15% @ 8O, 1kHz 1/8 Rated Power
  • S/N Ratio (20Hz-20kHz, 4Ohms):- >106db A
  • Cross-talk (1kHz,4 Ohms):- >40dB
  • Frequency Response:- 10Hz to 20kHz +/-1dB
  • Input Impedance:- Balanced 20K / Non Balanced 10K
  • Dampening Factor (10-400Hz,8 Ohms):- 600
  • Slew Rate:- 20V/us
  • Input Sensitivity:- 0.775V, 0 dB
  • Protection Fuctions:- Limiter, Short Circuit, Overload, Overheat, Direct Current, Radio Interference
  • Voltage Gain:- 40.8/38.6/32

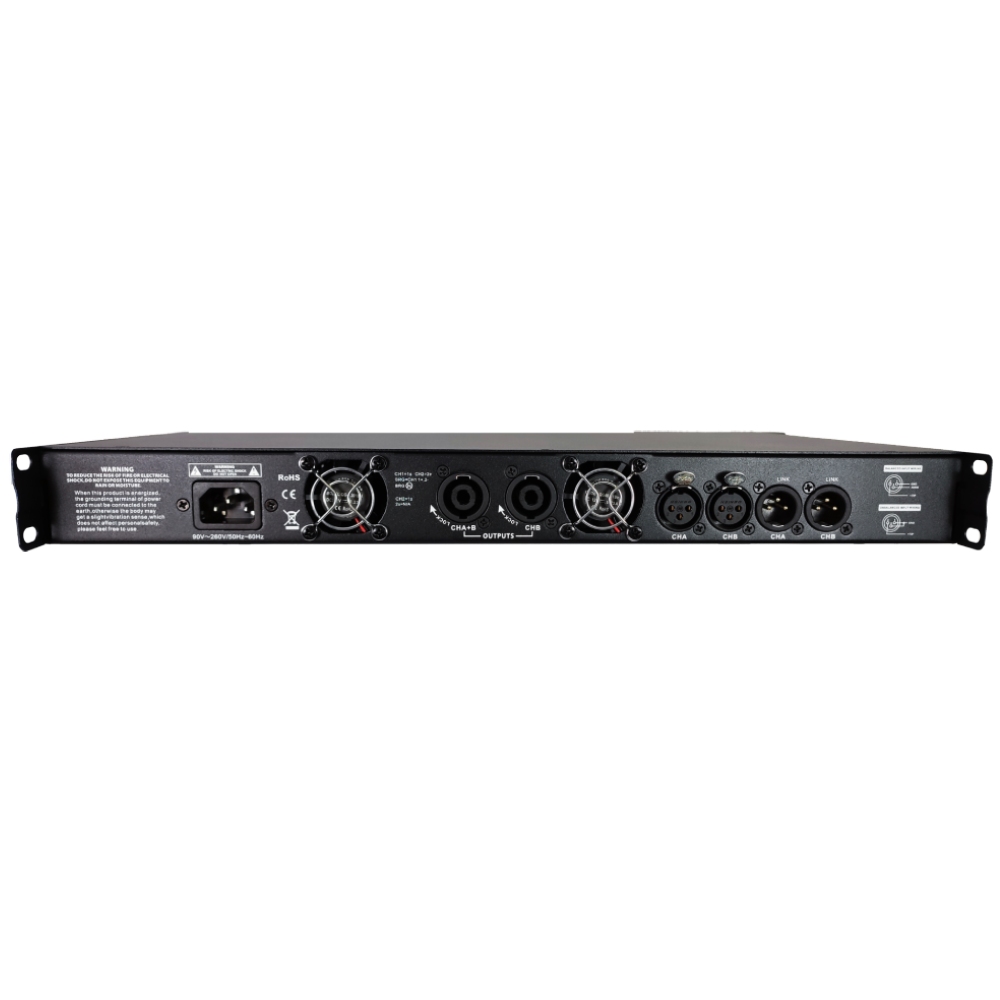

  • Output Connectors:-  Speakon
  • Input Connectors:-  XLR
  • Finish: Black
  • Rack Space: 1U
  • Dimensions: H44 x W483 x D230mm
  • Weight: 8kg
