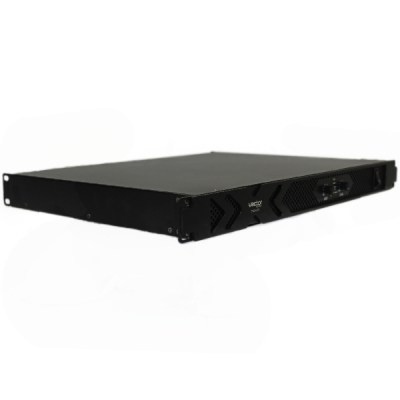

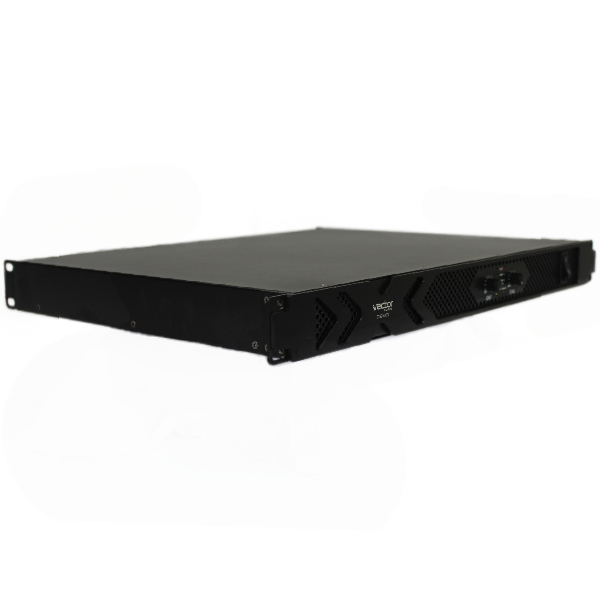

Vector DS2400V Amplifier

The Vector Audio DS series are a revolutionary dual-purpose, low impedance & 100V line, class D series of professional amplifiers. Situated in a compact, lightweight 1U package & designed using only high quality components, the range boasts exceptional performance & reliability. Available in both 2 or 4 channel variants & featuring pheonix connectors for balanced input & output. These amplifiers are ideally suited for a wide range of commercial install applications.

Specification

1Khz (EIA) With 0.5% THD

4 Ohms stereo (per channel):- 2x 400W

8 Ohms stereo (per channel):- 2x 300W

8 Ohms bridged mono:- 1x 600W

70-100V Circuit mode:- 1x 600W

Channel:- 2x Channel

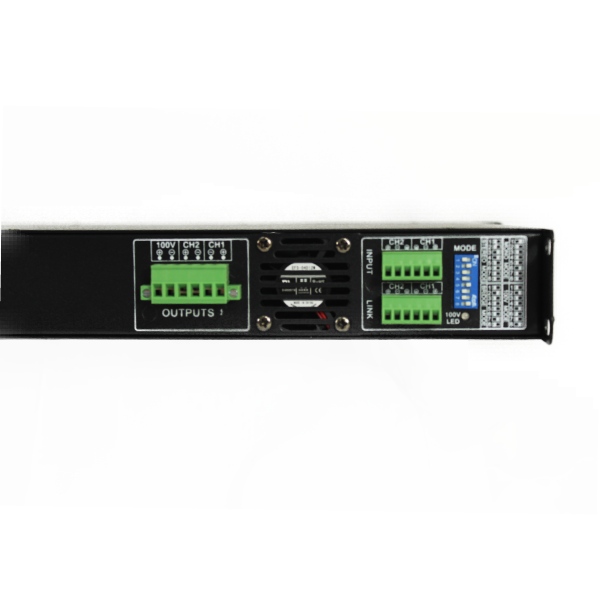

Input connectors:- pheonix

Output connectors:- pheonix

Rack space:- 1U (44mm)

Circuit Category:- Class D

Frequency response:- 20Hz - 20Khz +/-1dB

Total harmonic distortion:- <0.2%

Power voltage:- 90-120v or 220-240v

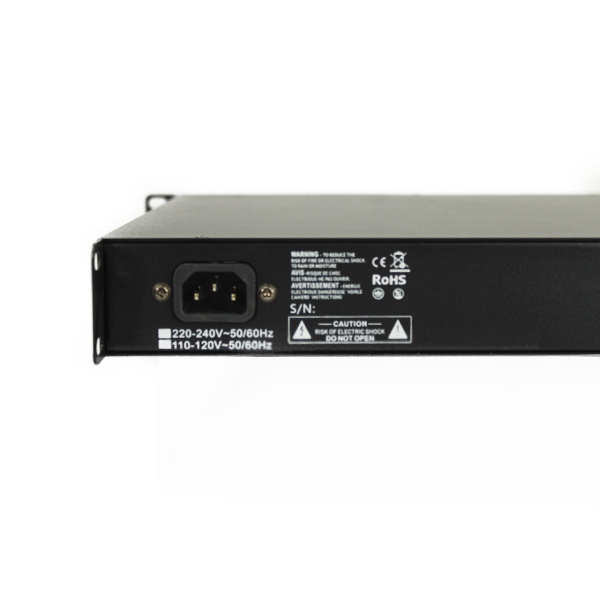

Power connectors:- standard IEC power connectors

Voltage gain:- 32dB

Damping factor:- >300 (8Ohms) 10Hz - 400Hz / 65dB

Signal noise ratio:- >100dB

Input sensitivity:- 0.775v

Input resistance:- 20k (balanced) / 10k (unbalanced)

Product dimensions:- 483 x 44 x 350mm

Net weight:- 6.3 kg

Shipping weight:- 7.65kg

Download manual
