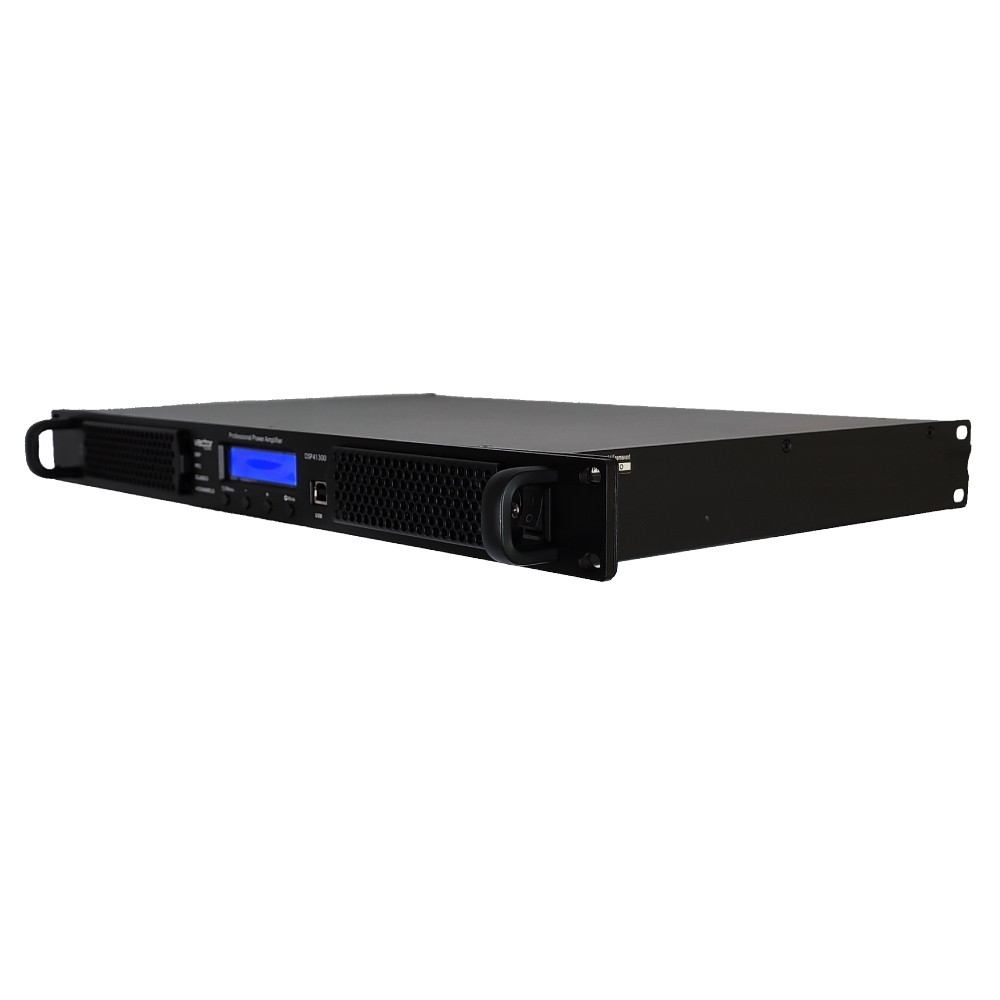

The Vector DSP series advanced Class D amplifiers bring together efficiency, reliability and high power into one sleek, light weight 1U unit. With built-in digital signal processing you can control the route, gain, phase, EQ, delay, frequency, compression & limitation of your speaker system. Vector DSP models are perfectly suited for touring, live & corporate events or fixed installation into bars, pubs, clubs, schools, houses of worship etc. Models include 2 & 4 channel variants all with LCD display and four button control as well as a USB interface for PC setup.

DSP Features:

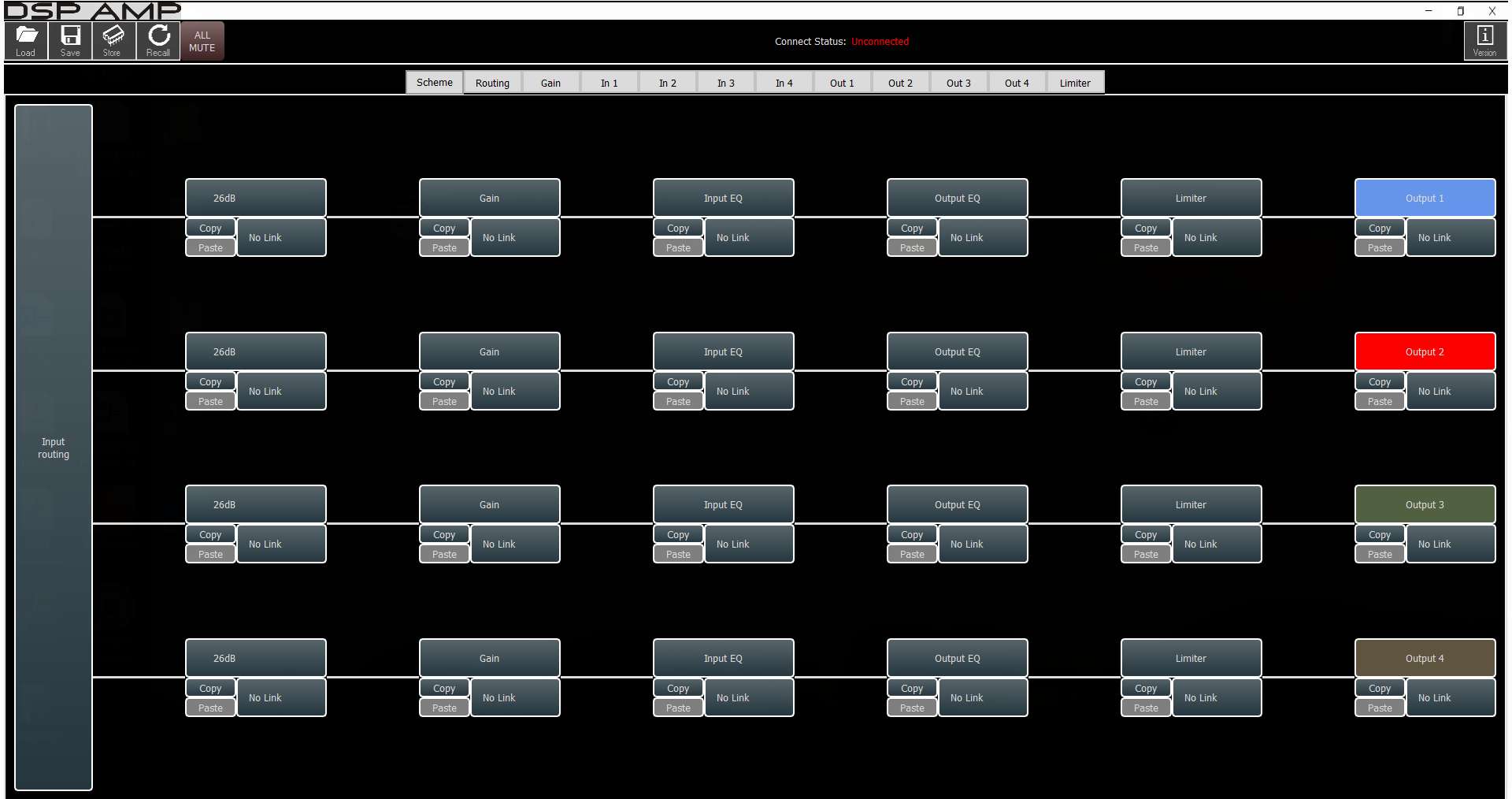

Signal Routing - All input channels can be routed to any output channel

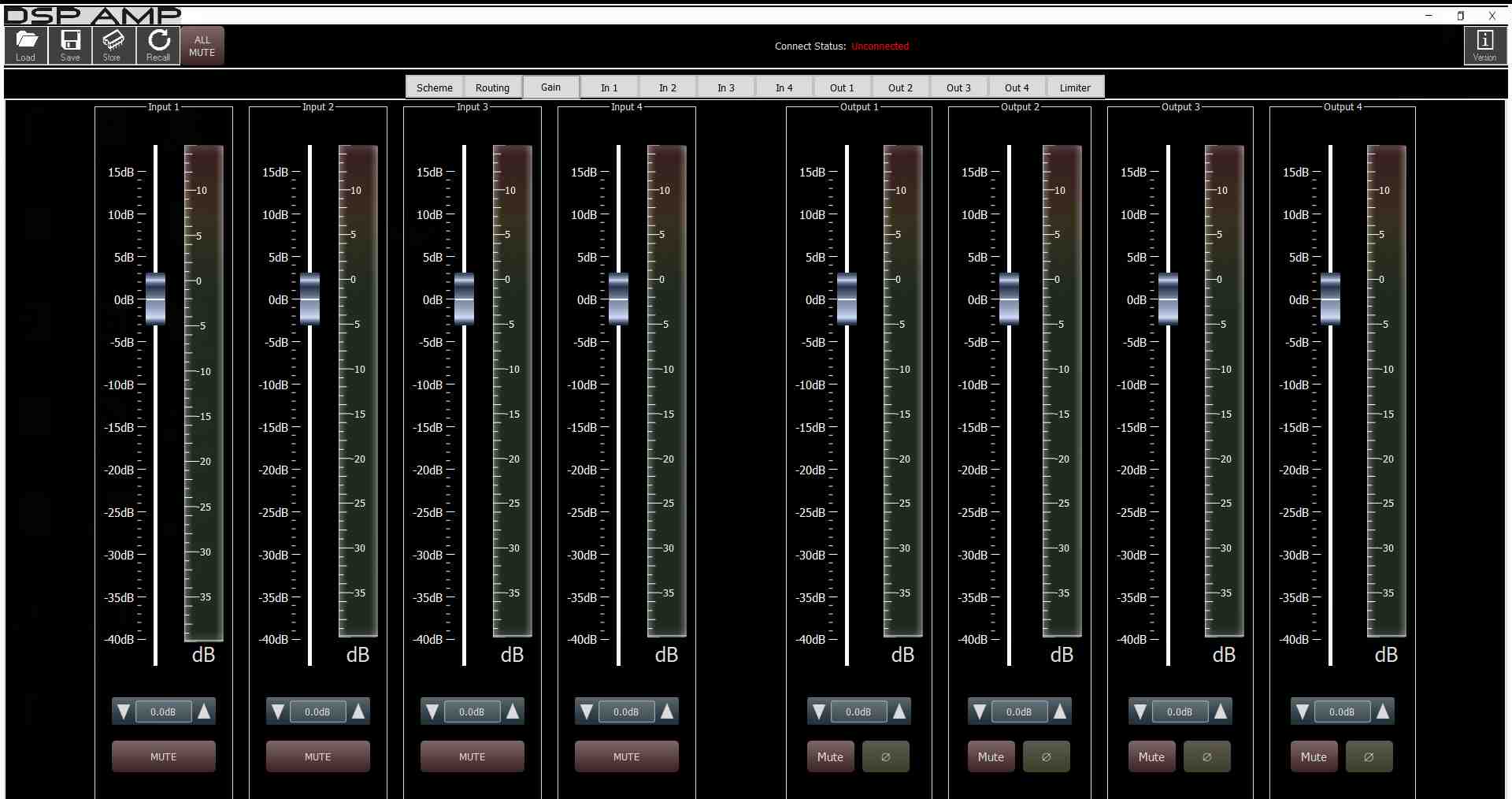

Gain Control - Adjustment range +15dB to -40dB (0.1dB Per Unit)

Delay - 0-20ms separate delay control for all input & output channels with speaker Delay upto 800ms

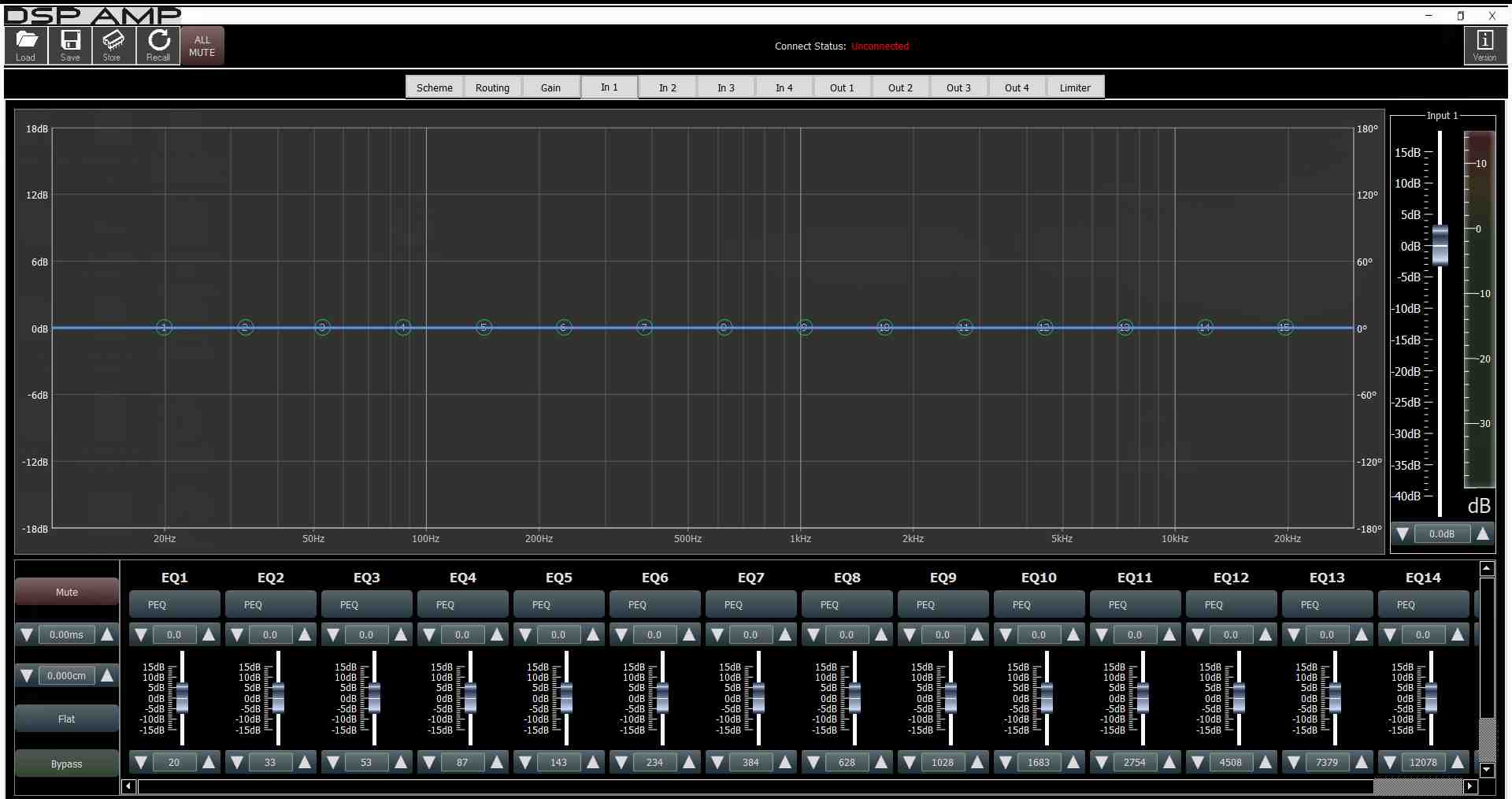

EQ - Parametric equalizer & 31 band equalizer on all inputs & outputs

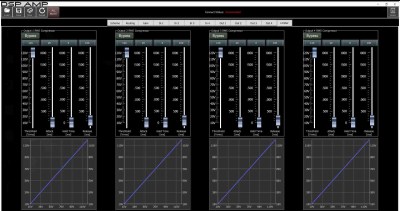

Compressor Limiter - Time: 10ms-3000ms, Hold Time:- 0ms-3000ms, Step: 1ms, Release Time:10ms-3000ms, Step:1ms

Specifications:

• Circuit Category:- CLASS D
• 4 x 1300w @ 4ohms.
• 4 x 800w @ 8ohms.
• 2 x 2600w @ 8ohms Bridged Mode
• THD:- 0.035% @ 8O, 1kHz 1/8 Rated Power
• IMD:   0.15% @ 8O, 1kHz 1/8 Rated Power
• S/N Ratio (20Hz-20kHz, 4Ohms):- >106db A
• Cross-talk (1kHz,4 Ohms):- >40dB
• Frequency Response:- 10Hz to 20Khz +/-1dB
• Input Impedance:- Balanced 20K / Non Balanced 10K
• Dampening Factor (10-400Hz,8 Ohms):- 600
• Slew Rate:- 20V/us
• Input Sensitivity:- 0.775V, 0 dB
• Protection Fuctions:- Limiter, Short Circuit, Overload, Overheat, Direct Current, Radio Interference
• Voltage Gain:- 40.8/38.6/32

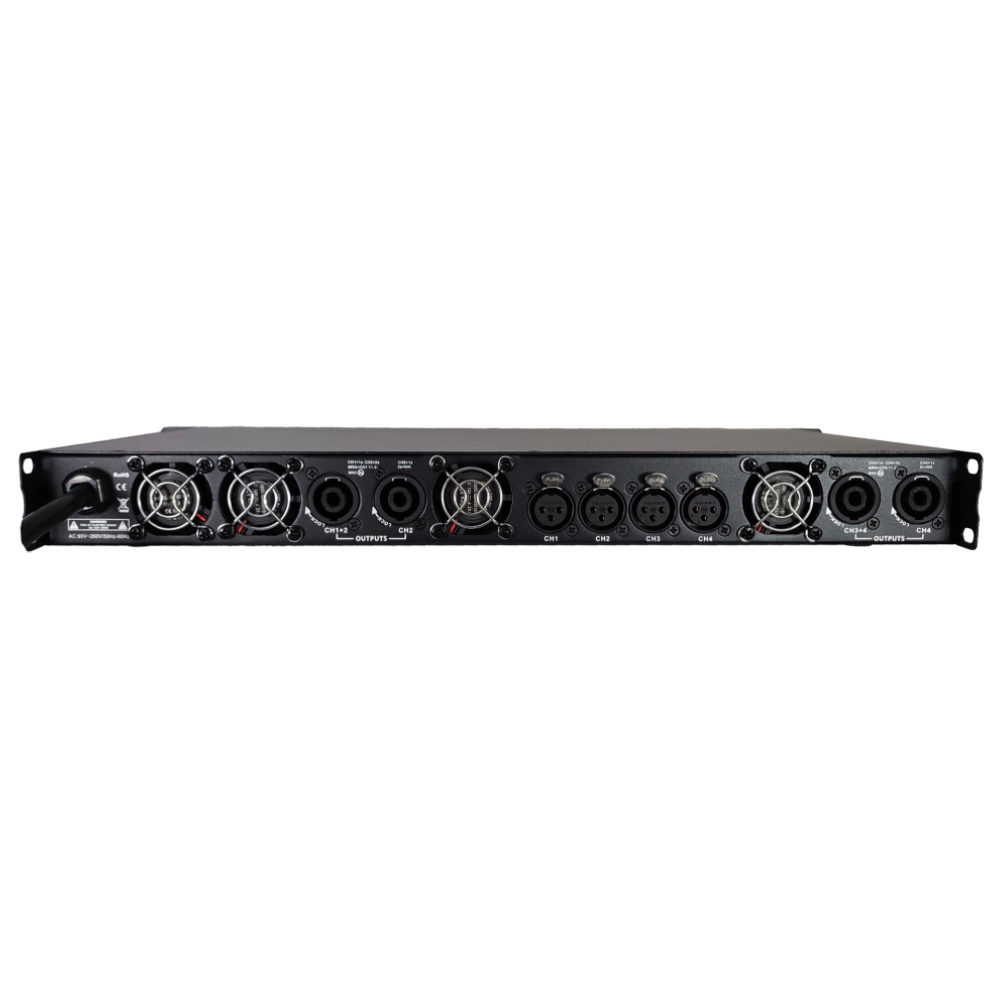

• Output Connectors:-  Speakon
• Input Connectors:-  XLR
• Finish: Black
• Rack Space: 1U
• Dimensions: H44 x W483 x D230mm
• Weight: 8kg
